IXBYT-35

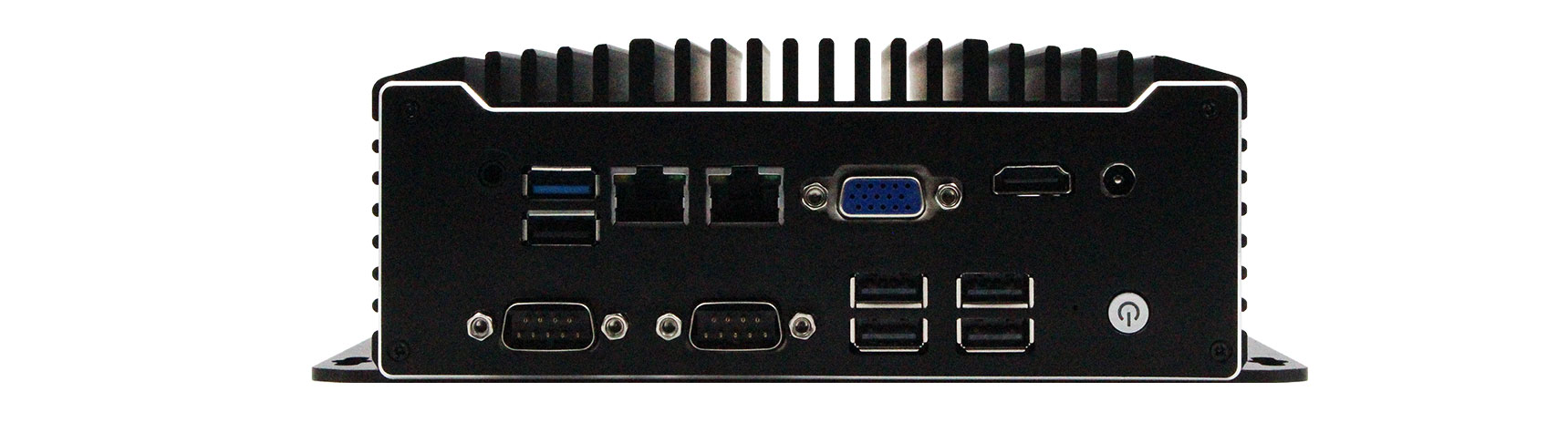

Supreme Interfaces
Plenty of ports for full connectivity.

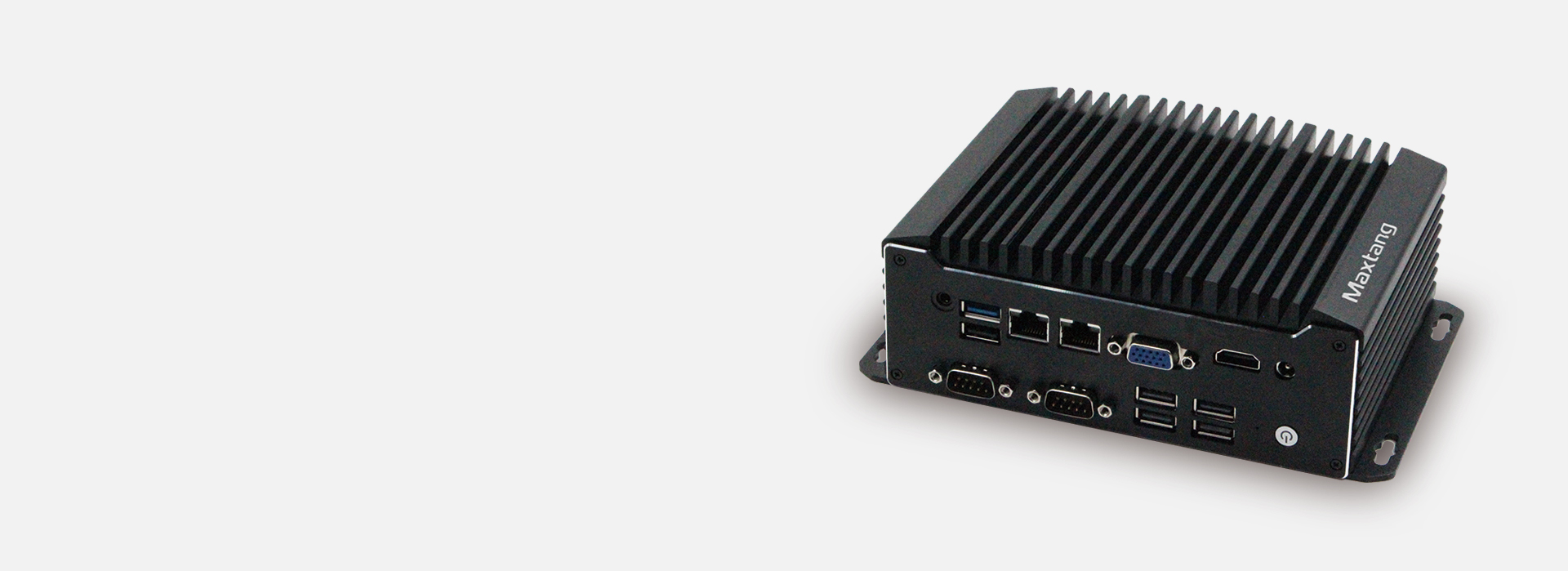

Compact Fanless Embedded PC
With supreme expansion, extreme performance.
Advanced features in Embedded PC
This PC blends the performance and power of Intel Bay Trail platform with rich I/O interfaces to form an especially adaptable computing platform, ideal for workplace and home entertainment.
High Performance CPU
The Intel® Celeron processor helps you stay ahead in the digital world. Get fast, responsive, and energy efficient performance and experience vivid content creation.

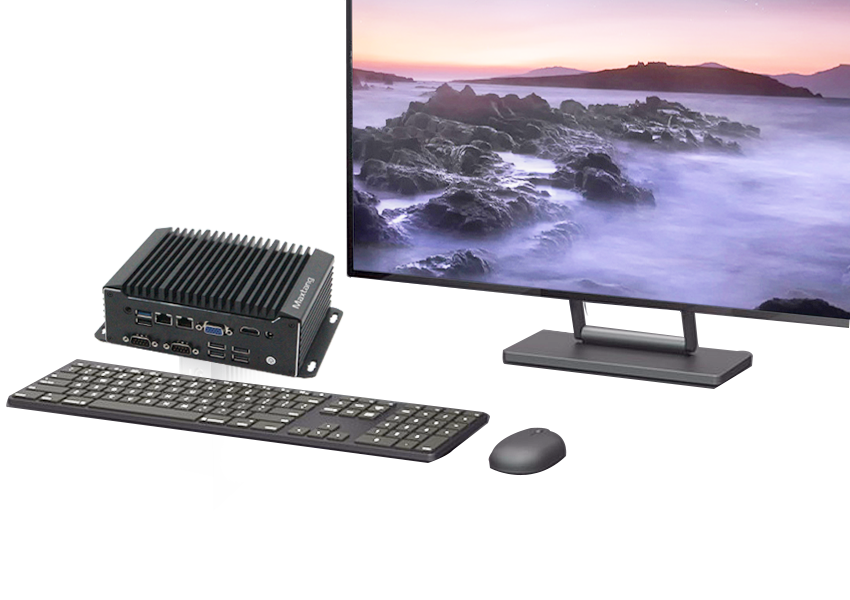

Dual Display
Enhanced productivity effiency by extended desktop or enjoy work and play with one ultra small form factor unit.
产品描述

The IXBYT35 is a small form factor embedded system. Built with the Intel® Bay Trail platform, it supports Celeron J1900, Celeron J1800 and Celeron N2940. It offers onboard 2GB or 4GB system memory for higher bandwidth and lower latencies for processes. Powered by Intel® i211 controller, this system is equipped with Dual Intel Gigabit Ethernet. This computer features SATA2.0, mSATA and eMMC (optional), which makes it a good choice for data transportation application.

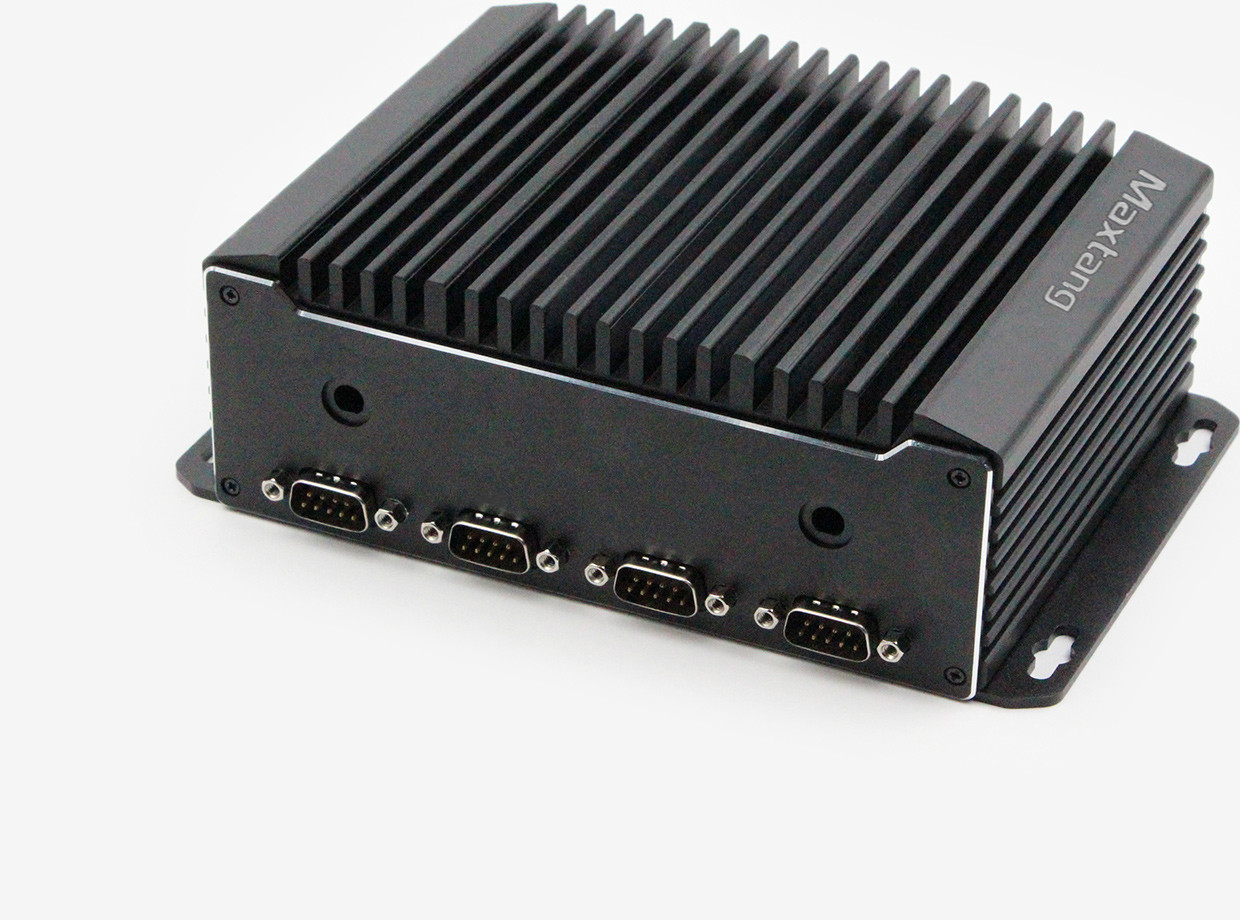

This system also features dual display including 1×VGA and 1×HDMI1.4. It has 2×LAN, 1×USB3.0, 5×USB 2.0, 4×RS232, 2×RS485, catering to most requirements in the market. This system is designed for various application as, but not limited to, automation, network security, communication and transportation.

功能

    • Intel Bay Trail BGA processor

    • Dual channel DDR3L up to 4GB

    • Display interfaces: VGA, HDMI

    • 10/100/1000Mbit ethernet card

    • SATA2.0, mSATA, eMMC (optional)

    • 12V DC input (9~36V,optional)
