WL-10

Intel® Whiskey Lake-U based Mini-ITX Embedded Motherboard Designed to support a wide range of industrial applications that require high computing and graphic performance with network connectivity options.

WL-10

Power at its Core

The latest Intel 8th Gen Intel Whiskey Lake processor provides you with higher and fast perfromance and impresses the Industrial end-customers with a performance increase of up to 40% compared to previous U-Series processors enabled by a leap from 2 to 4 cores along with the improved microarchitecture. The strong CPU allows you to work with greater productivity and speed whether its a office, work, home entertainment or gaming.

Multiple Display Support

The mITX-WL10 supports H.265 HW decoder that delivers stunning graphics and media performance.

Industrial controlling

Medical

Smart school

Digital signage

Expandability & Rich I/O Connectivity

WL10’s rich I/O and GPIO configurations fulfill the needs of different customer peripherals in enhanced embedded applications in infotainment, industrial automation, process control, small business/storage server, entry / mobile / cloud workstation, media transcode and edge computing / IoT segments.

产品概述

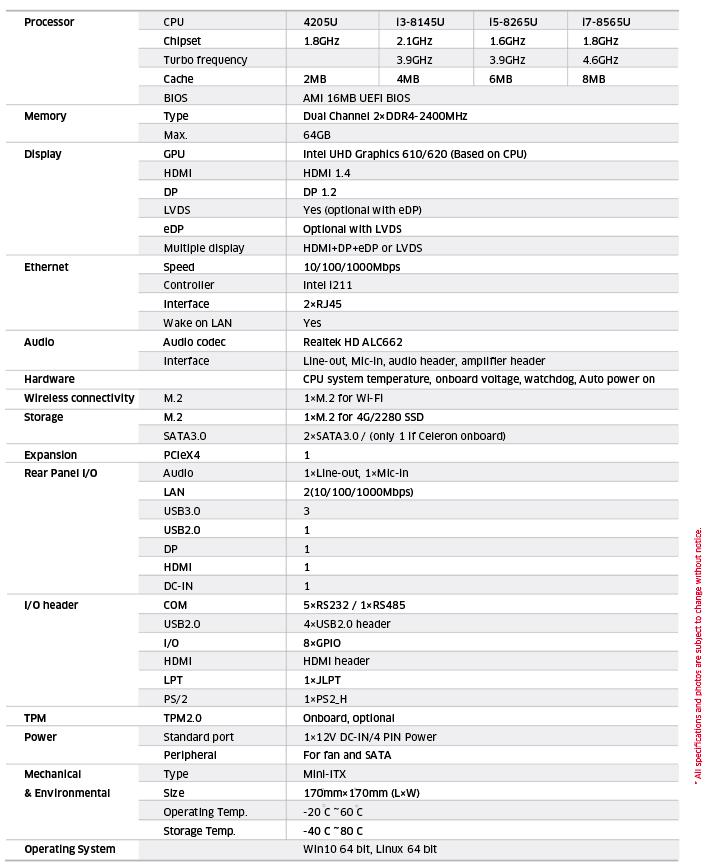

The mITX-WL10 is an embedded motherboard, supporting Intel® latest 8th Whiskey Lake-U Core™ i3/i5/i7 and Celeron processor, Celeron® 4205U, Core™ i3-8145U, Core™ i5-8265U, Core™ i7-8565U.

This board features multiple display via 1×Display Port1.2 and 1×HDMI1.4 and 1×eDP or 1×LVDS. It carries 2×DDR4 SO-DIMM 2400MHz slots up to 64GB to add higher bandwidth and lower latencies for processes. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211), 3×USB3.0, 5×USB2.0, 5×RS232, 1×RS485, 1×LPT, 1×JHDMI, 1×PS2_H, 8×GPIO.

产品特色

Intel 8th Gen Whiskey Lake-U processor
Dual channel DDR4 up to 32 GB memory
Multiple display: HDMI, DP, eDP/LVDS
Support 10/100/1000Mbit ethernet card
Support 3G/4G network
TPM Security (optional)
SATA3.0, M.2, PCIe 4x
12V DC input
