FP-10-

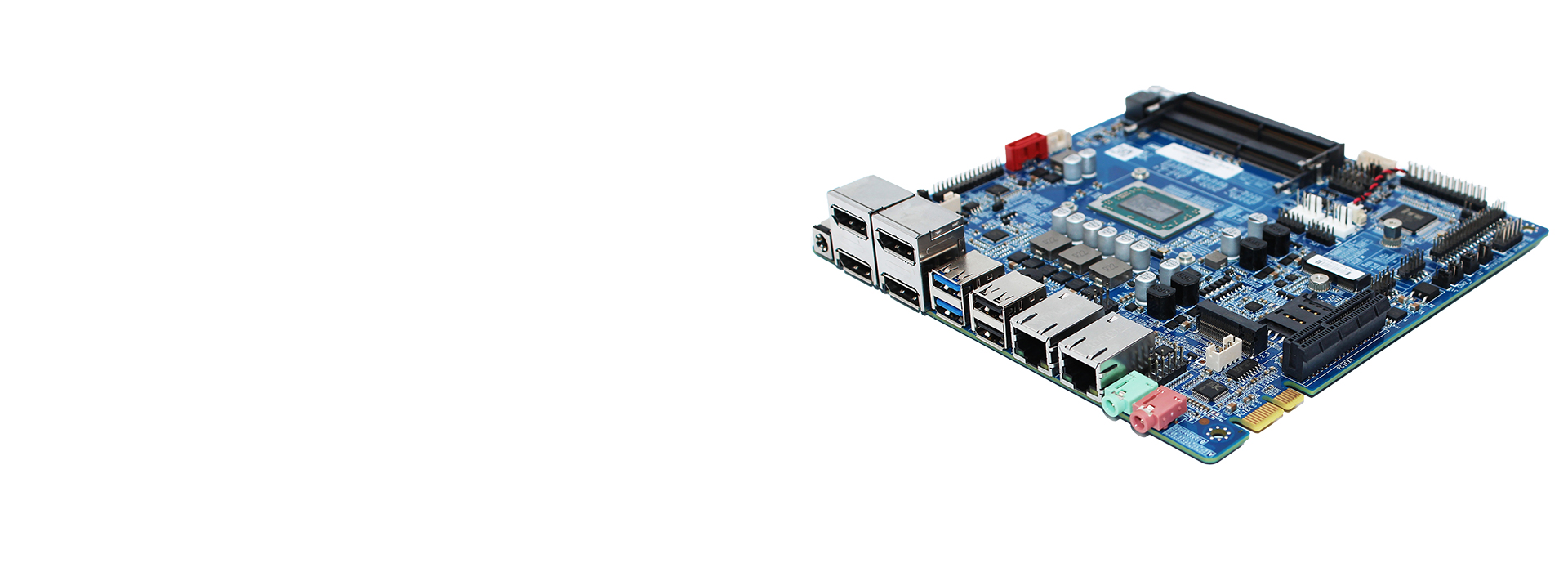

The new Maxtang mini-ITX embedded motherboard FP-10 is based on the AMD Ryzen quad-core processors, 2500U and V1605B, which multiplies your screen area and goes beyond the traditional limits of desktop computing. With multiple monitors, games become more immersive, workstations become more useful and you would become more productive.

Wide Applications

This product provides you with great experiences and helps you efficiently achieve your goals.

Upto 4 independent displays

Digital signage

Manufacturing

Stock trading

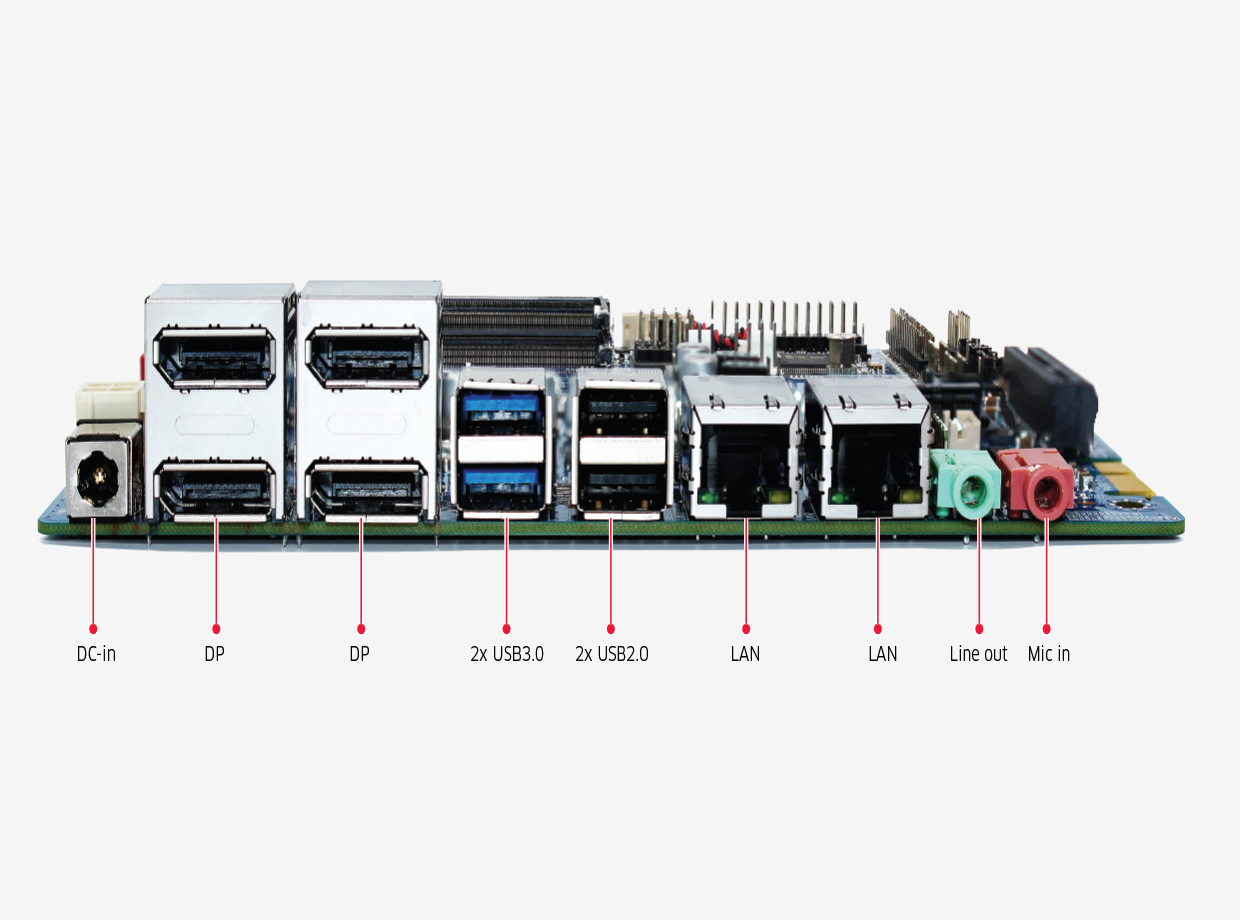

Rich I/O Ports

产品概述

The new Maxtang mini-ITX embedded motherboard FP10 is based on the AMD Ryzen™ 2500U (quad-core) and V1605B (quad-core) and provides a complete PC platform with high performance. Coming from the embedded V1000 processor family and mobile processor family, these CPUs combine the incredible performance of the pioneering “Zen” architecture and “Vega” GPU in a single chip with thermal design power (TDP) as low as 12W/15W. Four independent 4K+ DP displays are supported in addition to dual-channel DDR4 SO-DIMM memory, dual 1-Gigabit Ethernet controllers, and M.2 expansion for Wi-Fi and SSD modules. The TPM module for added security is also optional. It also has rich interfaces as 2 x USB2.0, 2 x USB3.0, 1 x Mic-in, 1 x Line-out and 2 x LAN, catering to most requirements in the market.

The FP10 is an ideal solution for applications requiring a high speed communications front-end like a mini-server or high-resolution display products like electronic gaming machines, medical imaging, interactive digital signage, thin clients, or PDS terminals.

产品特色

CPU: Ryzen™ 5 2500U and Ryzen™ Embedded V1605B
Memory: Dual channel SO-DIMM DDR4 (max 32 GB)
Display: Up to 4 DP displays (LVDS/eDP optional)
Ethernet: Support dual 1GbE ethernet cards
Storage: SATA3.0, M.2, PCIe X4, PCIe X1
Power: 12V DC input
Security: TPM 2.0 supported (optional)
